Karcher KM 105/110

Karcher KM 105/110


Send Enquiry Button

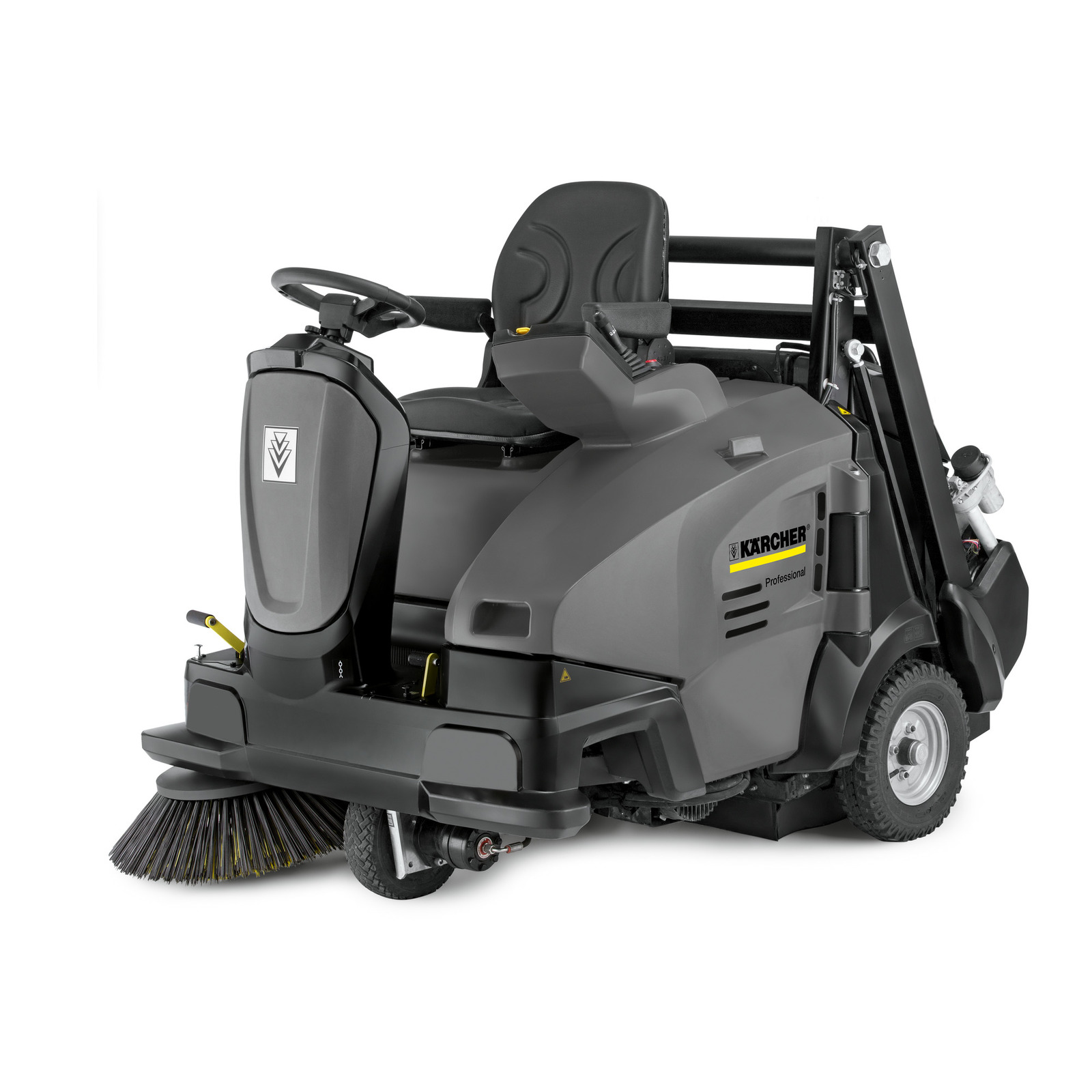

The Karcher KM 105/110 Ride-on vacuum sweeper with Tact filter cleaning system, unique sweeping crescent side brush, automatic adjustment of main sweeper roller in line with wear and tear via Teach system and new sweeping concept.

SKU: 0.300-208.0 Category: Tags: , , , ,

Karcher KM 105/110

The Karcher KM 105/110 Individually configurable vacuum sweeper with hydraulic container lift. The patented sweeping crescent side brush enables corner cleaning in a single pass! Cleans in a single pass, unlike other machines which need 5 to 7 passes – and sweeping by hand is not necessary.

The position of the main sweeper roller between the rear wheels allows driving over high kerbs without damage to the sweeping system. The Teach system automatically adjusts the main sweeper roller to wear and tear for consistently outstanding sweeping results.

There are three contact pressures to choose from, depending on the terrain and type of dirt. A further feature is the patented, fully automatic Tact filter cleaning system for dust-free operation and the patented Kärcher Intelligent Key system, which, among other things, controls the assignment of different user rights.

The multifunctional display provides clear menu guidance in 28 languages and displays information on, for example, roller brush wear or the selected roller brush contact pressure.

Featured Benifits:


Sweeping crescent side brush

  • No more tedious sweeping by hand.
  • Cleans in corners in a single pass.

Innovative, highly effective and automatic Tact filter cleaning system

  • Consistently clean pores for an optimal cleaning result.
  • Automatic cleaning.

Teach system

  • Automatic roller brush correction according to wear.
  • Three contact pressures adjustable at the push of a button.

Kärcher Intelligent Key

  • Programmable in 28 different languages.
  • Assignment of user rights for machine settings.

Roller brush on rear axle

  • Easier to drive over high kerbs.
  • Easy roller brush access, roller brush can be replaced in less than 5 minutes.

Control panel

  • Machine data is shown on the display (e.g. main sweeper roller wear display).
  • Colour coding.

Power Plus concept

  • Excess power generated during motion is transferred to a battery.
  • When driving uphill, the additional power is used for the motor.





Weight 606.06 kg
Dimensions 1800 × 1250 × 1450 cm


  • Drive DC motor
  • Drive – power (kW)1.4
  • Theoretical area performance (m²/h)6300
  • Practical area performance (m²/h)4725
  • Max. area performance with 2 side brushes (m²/h)8700
  • Working width (mm)640
  • Working width with 1 side brush (mm)1050
  • Working width with 2 side brushes (mm)1450
  • Working width without beltbrushes
  • Working width with 1 beltbrushes
  • Working width with 2 beltbrushes
  • Waste Container (l)110
  • Hill climbing ability (%)12
  • Operating speed (km/h)6
  • Container capacity
  • Battery voltage (V)24
  • Battery capacity (Ah)240
  • battery compartment size
  • Hydraulic container lift
  • Max. load capacity
  • Filter area
  • Drive type BatteryBattery
  • Water consumption
  • Weight without accessories (kg)606.06
  • Weight (with accessories) (kg)606.06
  • Weight, ready to operate
  • Weight incl. packaging (kg)607.06
  • Dimensions (L x W x H) (mm)1800 x 1250 x 1450

Standard Accessories

  • Vacuum
  • Outdoor applications
  • Automatic wear adjustment of the main sweeper roller
  • Automatic filter cleaning
  • Home Base fastening option
  • Operating hour meter
  • Traction drive, hydraulic
  • Travel drive, reverse
  • Travel drive – forward
  • Shared service concept
  • Bulk waste flap
  • Main sweeper roller on rear axle
  • Individual user languages/user rights
  • Indoor applications
  • Kärcher Intelligent Key
  • Sweep function (can be switched off)
  • Sweeping crescent side brush
  • Pneumatic wheels
  • Multi-functional display
  • Power Plus system
  • Side brushes
  • Start / Stop system
  • Tact filter cleaning
  • Teach system
  • Overthrow sweeping principle

Hire from as little as £295 per week!!!!
